Tranax Technologies Inc. Automated Teller Machines

MB-c4000 Mini Bank Stand Alone Indoor ATM...

The Tranax Mini-Bank c4000 series: A very dependable line of ATM is what the Tranax 4000 series has turned out to be.
Tranax is now manufacturing the Mini-Bank MB-c4000. The c stands for the huge 10.4" color monitor. It is a great value in off premises retail ATMs. The design focuses on screen size, is modern and has numerous technological enhancements to meet the proposed ADA and PIN security requirements that may go into effect in a few years. This makes the Tranax mini bank MB c4000 series, a great choice for any retail ATM situation. now and in the future. The MB c4000 is Triple DES compliant, and will be certified for years to come.

The new Mini-bank c4000 has standard features such as a voice guidance system, encrypted pin pad for security, and a fast 56K modem for quick transaction processing times. The Tranax Mini-Bank 4000 series just keeps running and running, it never breaks down and we've never had a complaint, just compliments! The warranty for Tranax Technologies automated teller machines is one year on all parts except the lock. 90 day warranty on all labor. An extended warranty is available. Contact us for details on the excellent Tranax extended warranty plan. It's one of the best warranties that ATM manufacturers have implemented.

The Mini-Bank c4000 series comes in three distinct platforms to fit every environment, from embedded, Windows CE, and Windows XP.




Optional High Topper

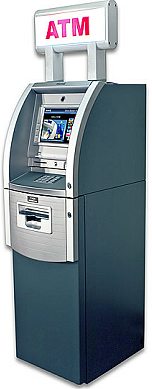

c4000 Level 1 optional safe and optional four cassette configuration shown







Monitor 10.4 inch diagonal 32-bit color, backlit TFT LCD panel
200 cd/m2 Luminance
SVGA - High Resolution (800x 600)

Keypad 16-key alphanumeric keypad with integrated Braille symbols
Encrypted Pin Pad (EPP)
Triple DES compliant
ANSI X9.24 Tamper Resistant Security Module
VISA / Interac Certified

Printer 80mm thermal receipt printer with 36 - 40 columns per line
Automatic paper loading and cutting
200 DPI Monographic printing capability
Paper out sensor

Cash Dispenser Upgradeable from 1 to 4 cassettes
Friction feed cash dispensing unit
Front loading of cassette (top loading for fixed cassette dispenser)
Locking Reject Bin
Low cash check sensor
Double detection sensor
Cash dispensing unit is mounted on a sliding shelf for easy service
CDU options:
800 note fixed cassette
1700 note removable cassette (optional up to 4 cassettes)

Card Reader Dip-type card reader
Reads ISO track 1, 2, and 3

Security UL 291 business hour listed safe (Level 1 optional)
1/4 inch thick steel bottom plate
Four floor mounting holes
Four leveling feet mounting holes
Lock options:
Manual dial lock
Electronic lock
Cencon 2000 lock

Communication 56k modem for dial-up connection
Communication option:
Ethernet (TCP/IP)

Voice Guidance Voice Guidance System (Meets ADA Guidelines)

Software Windows CE Platform
TDES Compliant AP Software
3 Languages for transactions
Electronic journal

Optional Accessories Illuminated Topper
Side Car Chassis
Automatic Envelope Accepting Depository
MICR and Check Imaging Scanner
ID Scanner
Card Dispenser

Others Lighted (LED) Transaction Guidance
Sleek new ergonomic design
Small space-saving footprint

Dimensions Height: 56"
Width: 17"
Depth: 23"
Weight: 260 lbs
