Tranax
Technologies Inc. Automated Teller Machines

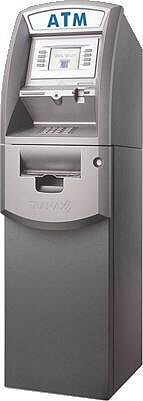

MB-1700 Mini Bank
Stand Alone Indoor ATM...
We
really like the looks of this machine. Just like the MB1500
before it, the MB1700 is designed to be easy to maintain,
it looks good, and is priced right! Tranax said the
mini bank MB1700 will inherit the unsurpassed reliability
and quality of the MB-1000 and MB1500, and they were right.
A modern eye-catching design was integrated with numerous
enhancements to meet ADA and PIN security requirements. This
alone makes the Tranax mini bank MB1700 a great choice for
any retail ATM deployment now and in the future, but add affordibility
to the mix, and the MB-1700 stands out. Triple DES compliant,
this ATM will not need a security upgrade for years to come.
The new mini bank MB1700 has standard features such as voice
guidance, encrypted pin pad and 56K modem. It offers a range
of options to custom configure an ATM solution for any location.
Not many ATM manufacturers offer the same level of integrated
design and built in flexibility.
 |
The
Tranax Mini-Bank 1700 is one of the the absolute best
values for retail ATMs. With its contemporary
design, matched with the reliability, durability and
security you’ve come to expect from Tranax, the
Mini-Bank 1700 offers the best value in its class. While
targeted for lower transaction volume retail markets,
the Mini-Bank 1700 retains all the standard features
you expect from a higher end machine including; TDES
and ADA compliance, VISA certified encrypting PIN pad
(EPP), a voice guidance system, and light action indicators.
This machine comes standard with many high quality features
including a 5.7 inch Monochrome LCD panel, 56K modem,
and an integrated lighted topper.
At
206 lbs, the solid construction of the Mini-Bank 1700
(UL291 Listed Business Hour) provides a secure vault
while offering the same modular construction for ease
of access and maintenance.
The
Tranax Mini-Bank 1700 is the best value in the market
for a low-cost ATM solution for low-traffic markets.
While
targeted for lower transaction volume retail markets,
the Mini-Bank 1700 retains all the standard features
you expect from a higher end machine including; TDES
and ADA compliance, VISA certified encrypting PIN pad
(EPP), a voice guidance system, and light action indicators.
This machine comes standard with many high quality features
including a 5.7 inch Monochrome or Color LCD panel,
56K modem, and an integrated lighted topper.
At
206 lbs, the solid construction of the Mini-Bank 1700
(UL291 Listed Business Hour) provides a secure vault
while offering the same modular construction for ease
of access and maintenance.
|
| |
|
|
Dimension
and Weight Width: 16 inches
Depth: 22 inches
Height: 56 inches
Weight: 206 pounds
Main Control Board ARM 7 - 32-bit processor
32MB RAM (not expandable)
Embedded Operating System
56Kb modem
Electronic Journal – stores up to 40,000 transactions
Power Supply Power switch
110 / 220 volts (manual selection)
60 / 50Hz
125 watts (max)
Fuse protection
Receipt Printer
2 inch thermal printer
Automatic paper loading and cutting
Paper out status sensor
Cash Dispensing Unit Friction feed
mechanism
Dispense capacity of 800 notes
Top loading cassette
Reject bin
Double detection sensor
Cash dispensing unit is mounted on a sliding panel for
easy service
Optional 1,700 note removable cassette
LCD Display and Function Keys
5.7 inch diagonal Monochrome or Color LCD panel with
320 x 240 resolution
Eight function keys for menu selection
Displays up to 8 customizable graphics screens which
rotate on idle, and while processing
Magnetic Card Reader Dip type
Reads ISO tracks 1 and 2
Keypad Triple DES compliant Encrypted
Pin Pad (EPP)
VISA Lab-certified (approval number 10104)
Tamper resistant design erases all programming and stored
master keys if opened
16 keys with integrated Braille symbols
0 – 9 for numeric entry
Left and right arrows for scrolling
ENTER, CLEAR, CANCEL and BLANK keys
Front Bezel Assembly The front bezel
assembly consists of a front bezel, LCD module, key
pad module, magnetic card reader module, ADA voice guidance
jack, and a locking mechanism. The front bezel assembly
slides in and out and also hinges forward for maintenance
using thumbscrews
Top Cabinet The top cabinet houses
a main control board, power supply, receipt printer,
and a front bezel assembly
The main control board, power supply, receipt printer
paper, and front bezel assembly are mounted on a sliding
tray, which also hinges forward for easy maintenance
and service
Include an Integrated illuminated topper
Vault UL291 business hour certified
UL listed combination lock
Handle and combination lock are covered by a plastic
bezel
Four floor mounting holes
Reinforced bottom plate
Power Requirement 110 /220VAC Manual
switch
Requires LINE, NEUTRAL, and GROUND
Phone Line Requires dedicated phone
line
RJ-11 phone jack
Temperature and Humidity Storage: 32F
– 104F, 10% < RH < 90% non-condensing
Operating: 40F – 95F, 15% < RH < 85% non-condensing
|
|
|
