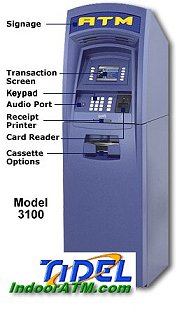

Tidel 3100:
The Model 3100 ATM from Tidel is designed to give a new value to low-cost, low maintenance and highly reliable cash dispensers. Tidel ATM cash machines include a wealth of standard ATM features usually reserved for more expensive automated teller machines.

The Tidel 3100 ATM is equipped with a UL 'Listed' vault, Tamper Resistant Encrypted PIN Pad (TREPP) and Secure Triple DES compliance, the Tidel 3100 provides you with the ATM security you have come to expect from Tidel automated teller machines. Tidel has also updated and designed the 3100's depth measurement to free up additional valuable floor space, and in many cases, valuable floor space!. A smaller footprint means it can fit in place where it could not before.

The Tidel 3100 is a very versatile platform.

Optional Features
5.7" Color LCD Monitor Display
33.6k Baud Modem for faster communication between the host ATM and the processor.

Software
CashWorks Check Cashing License (A third party service)

Locks
La Gard Electronic Lock with Battery
Mas Hamilton (Cencon 2000)

Integrated ATM Topper
Light Kit available to brighten the sign

External High Toppers
15" Static Backlit High Topper
15" Full Motion Video High Topper with Sound for stunning advertising capabilities. Optional on the Tidel 3100, it turns your ATM into a moving video monitor running almost any kind of advertising you choose.

Power Connections:
Unit recommended to be connected to a dedicated power circuit consisting of "line", "neutral" and "ground" leads connected directly to the power distribution panel.

Dimensions: Height: 60", Width: 18", Depth: 19.79"

Weight: 209 lbs.

Optional MCDM Expansion Module with One (1) Enclosed Tray
(Dispenser Supports a Maximum of Two (2) Trays)

Standard Features

UL 291 Business Hours 'Listed' Vault

MCDM Dispenser with One (1) Lower Capacity Enclosed Tray

5.7" Monochrome LCD Display (320 x 240 Resolution)

Dial Combination Vault Lock

Dip-Style Card Reader
(Upgradeable to Smart Card Technology)

Standard Modem
Thermal Graphics Printer (80mm Width Paper)

3 MB Memory

Integrated ATM Sign

Encrypting PIN Pad (EPP) with 3DES

Hardware for Private Audio
Transactions

Electronic Journal

installation extra. shipping extra

We'll show you why we're one of the fastest growing ATM Dealers on the Internet.
Our service is unsurpassed in customer satisfaction.

Outdoor ATMs for financial institutions OutdoorATM.com

More Tidel ATM Models are available below.

Tidel 3400:The first thing most people notice about the Tidel Model 3400 ATM is the vibrant 10.4" color monitor display. With twice the resolution of any dial-up cash dispensing mechanism in the ATM market, this spectacular monitor display is only one of the added value features of Tidel's most innovative ATM made to date.

.
Standard Features

10.4" Color LCD Display (640 x 480 Resolution)
TCDM High Capacity Dispenser
Integrated ATM Topper
6MB Total Memory
33.6 Baud Modem
UL 291 Business Hours Vault
Combination Dial Lock
Tamper Resistant Encrypted PIN Pad with 3DES
ADA Voice Guidance Hardware
80mm Thermal Graphics Printer
Electronic Journal

Dimensions: H: 60", W: 18", D: 20"

Weight: UL 291 Business Hours Vault: 280 lbs.
Weight: UL 291 Level 1 Vault: 707 lbs.

Power Requirements: 100-250v AC, 50/60Hz, 2.6 AMP.
Power Supply: 150 watt, individually fused with on/off switch.

Power Connections:
This ATM is recommended to be connected to a dedicated power circuit consisting of "line", "neutral" and "ground" leads connected directly to the power distribution panel of an electrical system..

high topper shown

The Tidel 3400 ATM comes standard with the Tidel Cash Dispensing Mechanism (TCDM) which offers field expandability from 1 to 4 cassettes at a greatly reduced cost. This cash machine dispenser is based on market proven dispenser technologies and designs and can easily be upgraded in existing ATMs that have been installed. Cash Dispensers are offered with up to 4 high capacity cassettes.

Additional features such as constant monitoring and logging of vault access, Tamper Resistant Encrypted PIN Pads (TREPP) and Triple DES compliance make the 3400 a leader in ATM security. The 3400 also complies with all existing and currently proposed Americans with Disabilities Act (ADA) regulations now and in the future as well. This includes standard hardware for private audio transactions.

Optional Features

UL 291 Level 1 Vault

Locks
Mas Hamilton (Cencon 2000)

Cash Dispensers & Cassettes
CDM Low Capacity Dispenser
TCDM Expansion Module with Cassette
Additional High Capacity TCDM Cash Cassettes
TCDM Cassette Locking Kit

Integrated ATM Topper
Light Kit

External High Toppers
15" Static Backlit High Topper
15" Full Motion Video High Topper with Sound
