Nautilus Hyosung brand Automated Teller Machines

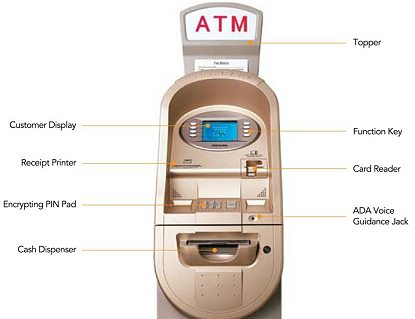

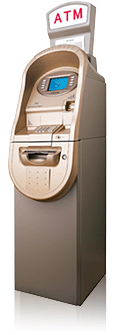

NH-1500 ATM...

Nautilus Hyosung Inc. has been building the NH-1500 for a few years now. It has proven to be very reliable and still is. Built strong and durable, the NH-1500 is great choice when considering ATM's for purchase. The design is advanced looking and attracts attention, even from across the room. The topper is optional and makes a good addition. Current specifications for the NH-1500 are below.

The mini-Bank NH-1500 is one of the most reliable and most cost effective walk up configured ATM's available in the retail market. With its small footprint and easy installation, it is considered one of the best selling models ever.

Customer Display
5.7"Monochrome LCD
Optional
5.7"Color LCD

Communication
Dial Up

Input Type
4 x 2 Function keys
4 x 4 Numeric keys
Encrypting PIN Pad
(DES, T-DES, Unique Key)

Card Handling
Dip Type Card Reader
Optional
IC card reader

Cash Dispensing
1,000 notes cassette
Optional
1,000 notes drawer
2,000 notes cassette(Up to 4000 notes)

Printers
Thermal receipt printer
Electronic Journal

Security
UL biz hour safety
Dial Lock
Optional
Electronic/Cencon Lock

Miscellaneous
Voice guidance earphone jack
Optional
Illuminated topper

Power Supply
AC 110~230V, 50~60Hz

Operating Environment
Temperature
40?~95?(5?~35?)
Humidity
15%~85%

Dimension and Weight
Height: 55.4" (1,397mm)
Width : 16" (406mm)
Depth : 24" (610mm)
Weight: 269lbs(122Kg)
